ID: M5CARDADV

M5Stack

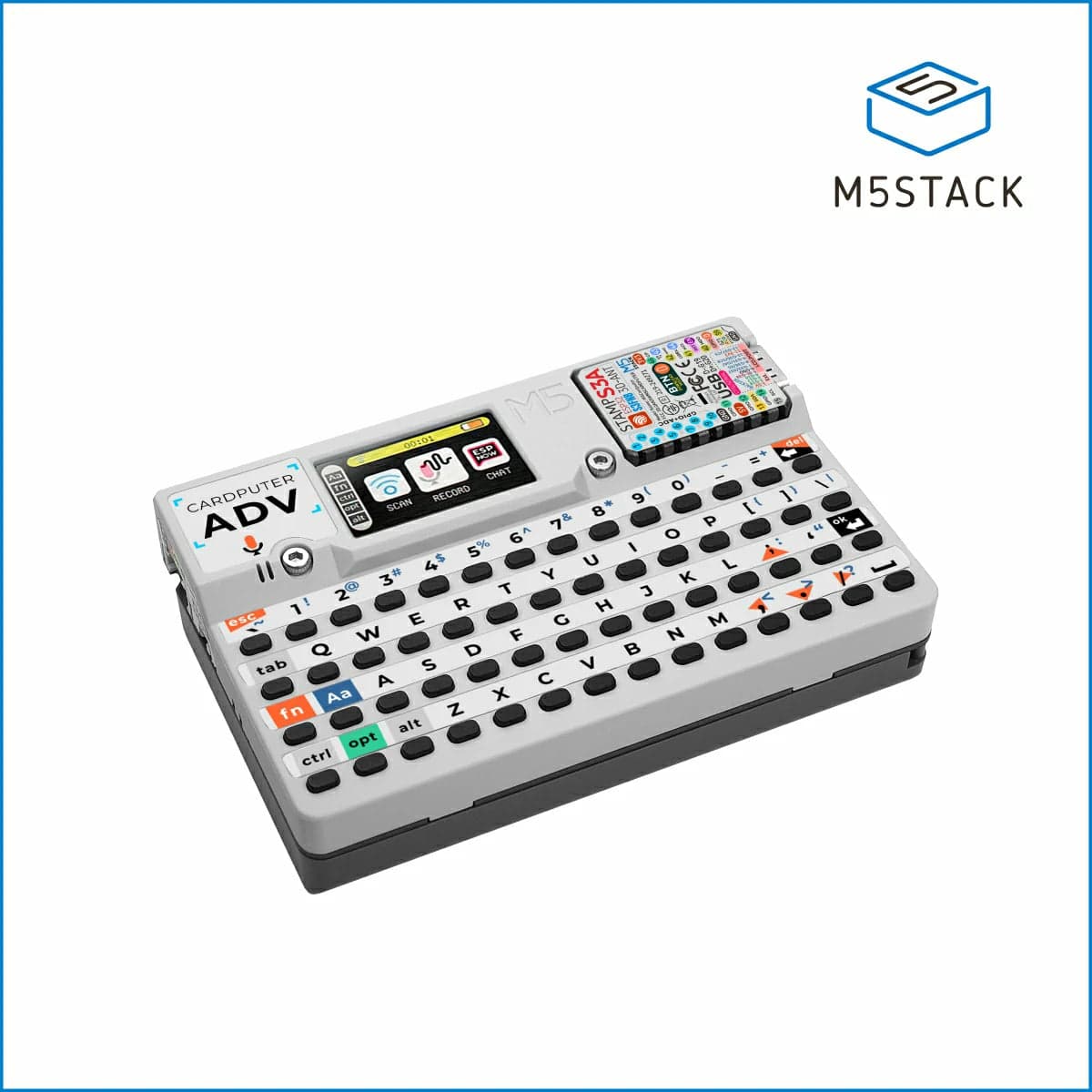

Cardputer Adv Version

$30.00

A pocket-sized, credit-card form factor programmable "mini computer" with a 56-key keyboard, small color screen, and upgraded peripherals based on the ESP32-S3.

VIEW DATA

FEATURES

Powered by ESP32-S3FN8 (dual-core up to 240MHz, 8MB Flash) via Stamp-S3A module
56-key (4x14 matrix) keyboard with comfortable 160gf actuation for extended typing
Provides rich audio with ES8311 codec, high-SNR MEMS mic, 1W speaker, and a 3.5mm headphone jack
Features BMI270 6-axis IMU, IR emitter, microSD slot, Grove port, and 14-pin expansion header
Highly portable at ~84×54×19.6mm and 81g, with a 1750mAh battery and magnetic back

TECH_SPECS

> I/O

IR emitter, microSD, Grove HY2.0-4P, 14-pin header

> Core

ESP32-S3FN8 (8MB Flash)

> Audio

ES8311 codec, MEMS mic, 1W speaker, 3.5mm jack

> Battery

1750mAh

> Display

1.14" IPS LCD (240x135, ST7789V2)

> Sensors

BMI270 6-axis IMU

> Keyboard

56-key (4x14 matrix), 160gf actuation

> Size/Weight

~84×54×19.6mm, 81g
