ID: K151

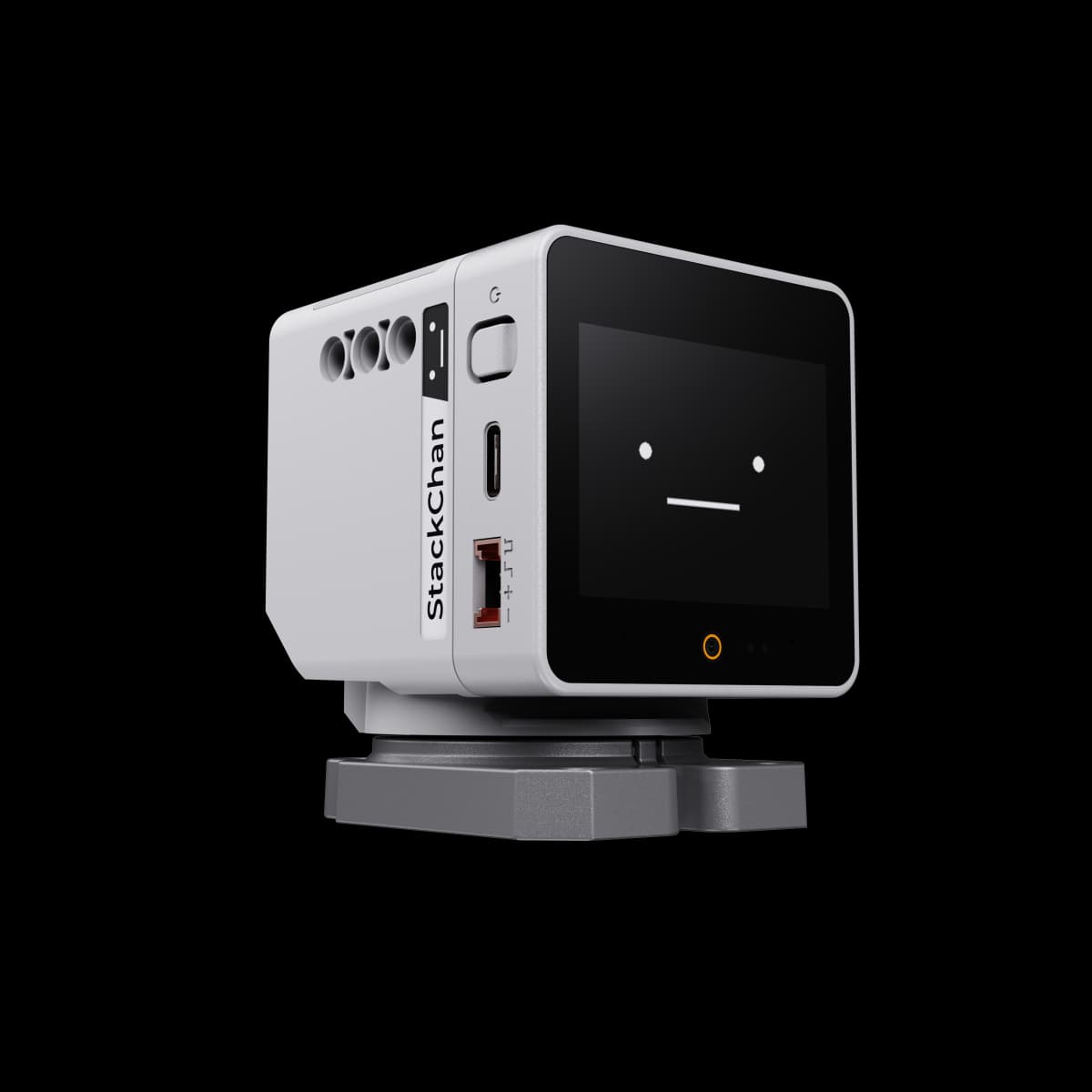

StackChan

AI Desktop Robot

$149.99

StackChan is a super kawaii AI desktop robot co-created by M5Stack and the user community. It uses the M5Stack flagship IoT development kit CoreS3 as its main controller, featuring vivid facial expressions and the XiaoZhi AI agent.

VIEW DATA

FEATURES

Powered by an ESP32-S3 SoC (240 MHz dual-core processor, 16MB Flash, 8MB PSRAM)
Two feedback servos allow for 360-degree continuous rotation (horizontal) and 90-degree movement (vertical)
2.0-inch capacitive touch display, 0.3 MP camera, proximity sensor, 9-axis IMU, microSD card slot, 1W speaker, and dual microphones
Sensory Feedback: Two rows totaling 12 RGB LEDs, a top-mounted three-zone touch panel, and a full-featured NFC module
Integrated XiaoZhi AI agent for voice-based Q&A, smart home IoT control (via Home Assistant), and customizable desktop companion features

TECH_SPECS

> Power

700 mAh battery, USB-C power/data, Power management IC AXP2101

> Camera

GC0308, 640x480, 0.3 MP

> Memory

16MB Flash, 8MB PSRAM

> Motors

360° horizontal servo & 90° vertical servo (with feedback)

> Weight

186.0 g

> Display

2.0-inch IPS LCD (320x240, 65536 colors), Capacitive multi-touch

> Sensors

Dual microphones, Proximity (LTR-553ALS-WA), 9-axis IMU (BMI270 + BMM150), NFC (ST25R3916), IR TX/RX

> Wireless

2.4 GHz Wi-Fi (IEEE 802.11 b/g/n), Bluetooth® 5 LE

> Dimensions

54.0 x 70.0 x 62.0 mm

> Main Controller

ESP32-S3 Xtensa® dual-core 32-bit LX7, 240 MHz
